AllOutdoor Review: Vortex Pro Extended Cantilever Mount 34mm

When you’re mounting a serious 34mm optic on an AR platform, the mount becomes just as critical as the scope itself. The Vortex Pro Extended Cantilever Mount addresses a specific problem that anyone running larger scopes on AR-style rifles knows well: getting proper scope placement without your charging handle turning into an obstacle course. After putting this mount through its paces with 200 rounds downrange supporting a Strike Eagle 3-18×44, here’s what you need to know about this solution.

Vortex Coverage on AllOutdoor

Specifications: Vortex Pro Extended Cantilever Mount 34mm

The Pro Extended Cantilever Mount is designed specifically for 34mm tube scopes that need positioning help on AR platforms. The key feature is the 2″ offset that pushes your optic forward enough to clear charging handle interference while maintaining proper eye relief. At 1.44″ center scope height, it puts you in extra-high absolute territory, which works well with adjustable stocks or higher cheek risers. The horizontally split design keeps everything as one solid piece during installation, and the USA-made 6061 aluminum construction with Type 2 anodizing provides the durability you’d expect at this price point.

  • Model: CVP-34
  • Tube Size: 34mm
  • Ring Height: Extra-High Absolute
  • Center Scope Height: 1.44″
  • Offset: 2″
  • Material: 6061 Aluminum
  • Finish: Type 2 Low-Glare Matte Black Anodized
  • Cap Screw Torque: 15-18 in-lbs
  • Base Screw Torque: 30 in-lbs
  • Compatibility: Picatinny Rail
  • Hardware: Uses 1/2″ Hex Bolts

At $229.99, this isn’t a budget mount, but it’s priced appropriately for what you’re likely pairing it with. If you’re mounting a $1,000+ optic, spending $230 on a quality mount makes sense. This falls into the “buy once, cry once” category—you’re paying for USA-made construction, Vortex’s lifetime warranty, and the engineering that makes the offset work properly.

Could you find cheaper alternatives? Absolutely. But when you’re dealing with a serious optic investment, this mount provides the reliability and warranty backing that justifies the price tag. It’s worth it for the value of the scope it will likely be paired with.

“These USA made Pro Extended Cantilever Mounts provide the correct height and forward placement for proper riflescope mounting.”

First Impressions: Vortex Pro Extended Cantilever Mount 34mm

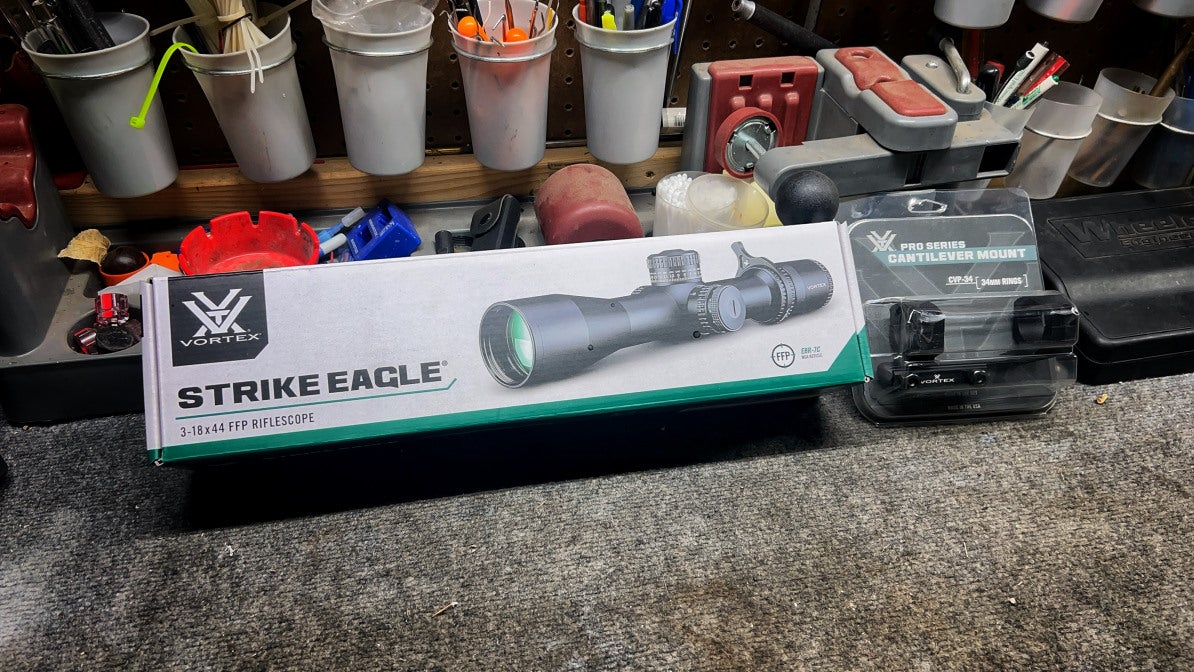

Right out of the box, this mount feels substantial and well-machined. The 6061 aluminum construction is what you’d expect from Vortex—solid build quality with a clean matte black finish. The horizontally split design means you’re dealing with one piece instead of juggling separate rings, which makes the whole installation process more manageable.

Vortex Pro Extended Cantilever Mount

The mount comes with eight #8-40 x 5/16″ screws and a T-15 wrench, though I ended up using my Vortex torque wrench for installation. Everything feels properly engineered rather than just adequate. The 2″ offset is immediately obvious and exactly what you need if you’ve dealt with charging handle interference issues on AR setups with larger scopes.

Range Performance: Vortex Pro Extended Cantilever Mount 34mm

Installation was refreshingly straightforward. The instructions are thorough and easy to follow, which isn’t always a given with scope mounts. I went slightly outside Vortex’s recommended 15-18 in-lbs torque spec and tightened to 20 in-lbs for extra peace of mind. That’s my personal preference based on long-term experience – I find 20-25 in-lbs works better for me over time. However, I wouldn’t recommend going outside Vortex’s specifications. Just me being open and honest.

Vortex Pro Extended Cantilever Mount

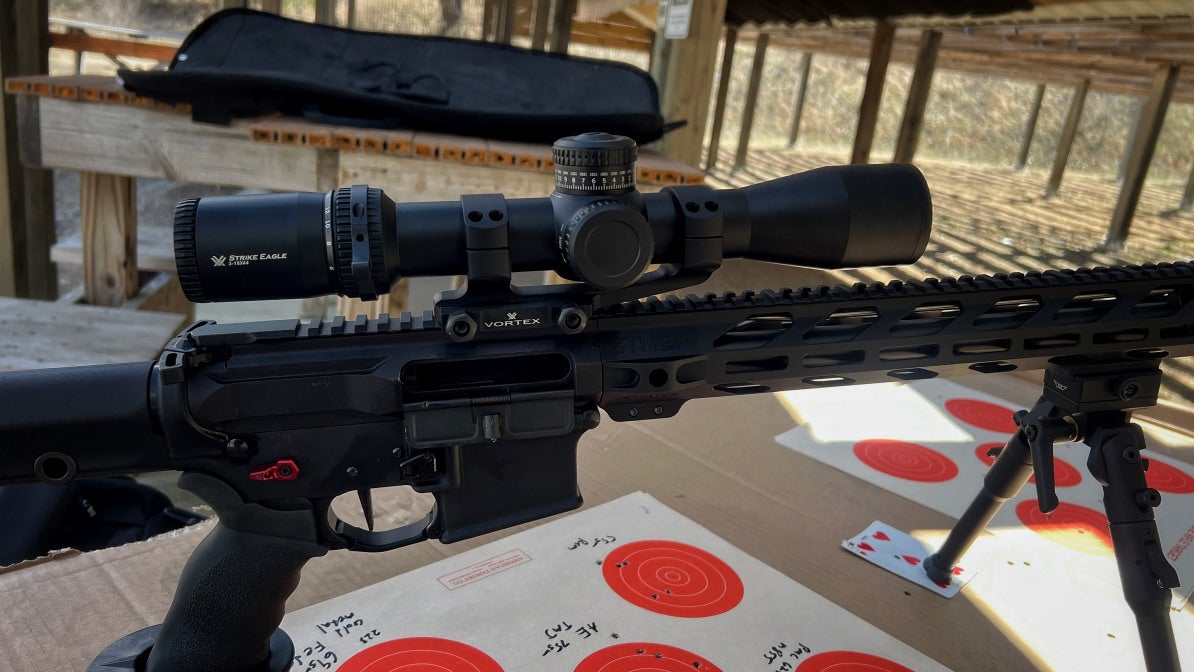

The mount seated perfectly on my AR’s rail with no wobble or movement. Once torqued down, everything felt rock solid through 200 rounds of shooting. I didn’t experience any point of impact shift after installation, which speaks to both the mount’s rigidity and proper installation. Once zeroed, everything stayed put. No flex or movement under recoil, which is exactly what you want from a mount in this price range.

Vortex Pro Extended Cantilever Mount

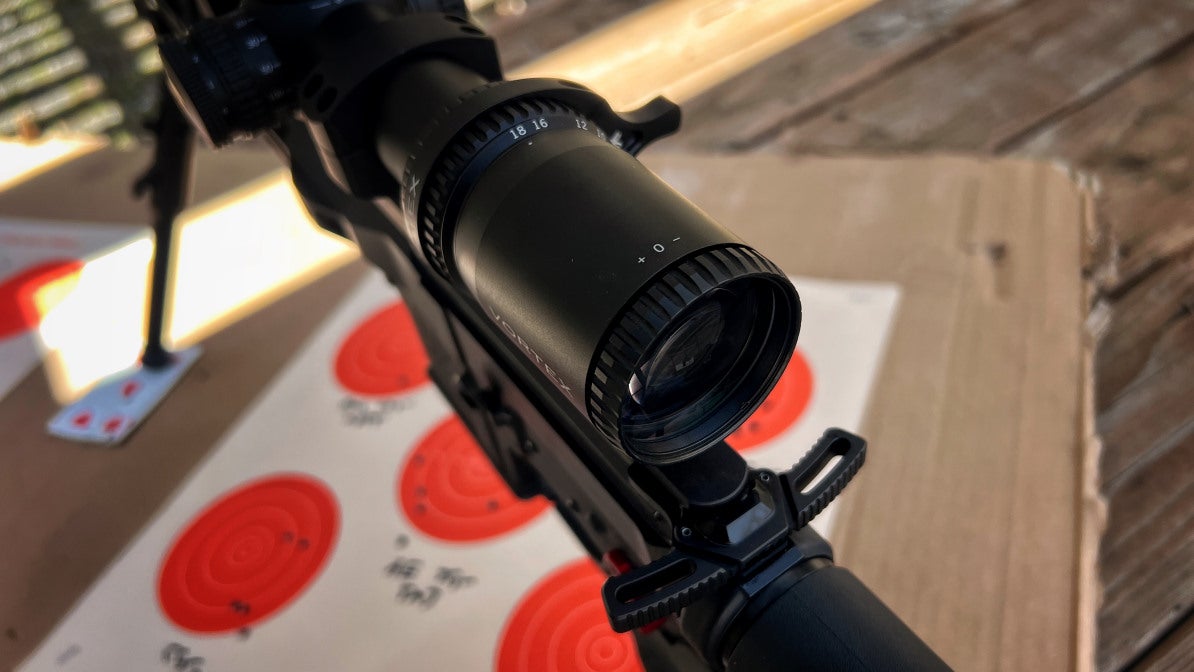

The 1.44″ center scope height worked perfectly with my adjustable stock setup. The 2″ offset positioned my Strike Eagle exactly where it needed to be—far enough forward for easy charging handle access without compromising eye relief.

Features That Actually Matter to Me

  • 2″ Offset: This is the main selling point. Gets your scope positioned properly while giving you full charging handle access. Also useful for managing limited rail space or balancing larger scopes.
  • Horizontally Split Design: One solid piece makes installation easier and keeps everything sturdy. No juggling separate ring halves.
  • USA-Made Construction: 6061 aluminum with proper machining and finishing. Built to last.
  • Lifetime Warranty: Vortex stands behind their products. If it breaks, they’ll fix it.
  • What’s Missing: The one thing I miss compared to some other mounts in this price range is quick-detach capability. QD allows you to remove your entire optic setup with a couple of lever flips and return to zero when reinstalled. Both cantilever mounts and traditional rings in the $200-250 range often include this feature.

Final Thoughts

The Vortex Pro Extended Cantilever Mount 34mm solves a specific problem well. If you need that 2″ offset for charging handle clearance or rail space management on an AR platform, this mount delivers exactly what it promises. The installation is straightforward, the build quality is solid, and it performs without drama. The lack of QD functionality is disappointing at this price point, but if you’re mounting a scope and leaving it there—which most people do—this isn’t a deal-breaker.

Vortex Pro Extended Cantilever Mount

For shooters running larger optics on AR-style rifles, this mount represents a practical solution backed by a company that stands behind their products. Sometimes the best gear is the stuff that just works without making you think about it—and this mount falls squarely into that category.

Vortex Pro Extended Cantilever Mount

In closing, I want to say thank you to Vortex for allowing AllOutdoor and myself the opportunity to try out their Pro Extended Cantilever Mount 34mm! That is greatly appreciated. Also, we would like to know what all of you guys and gals think? Do you believe that this mount is worth spending your money on for your AR setup? Would you choose this over QD alternatives? Let us know all of your thoughts in the Comments below! We always appreciate your feedback.
