Black Rain Ordnance Strike JP LMOS Carrier Upgrade & Hiperfire 24E

Over the years since I was the first editor to review the Black Rain Ordnance Fallout15, my super awesome little custom BRO rifle has been a host for numerous optics reviews. Currently the rifle features a Burris AR553, which has been a blast to shoot with. It is a really beautiful gun, which many note has had some obvious wear over time from thousands of rounds chipping away on the shell deflector area and a few dings from regular use without babying.

I have never really wanted any other upgrades beyond those already done. After all, it came equipped with a stunning hydro dipped billet upper and lower matched receiver set, match grade .223 Wylde stainless barrel, Geissele trigger (current versions come standard with BRO’s own trigger), a free float forend, KNS Anti-rotate pins, a NiBo carrier, and all USA made components, including the buffer assembly and Magpul furniture. The gun only had three key upgrades, including an Ace Ultra Light stock, BRO adjustable gas block, and a Clark Carbon Fiber Handguard.

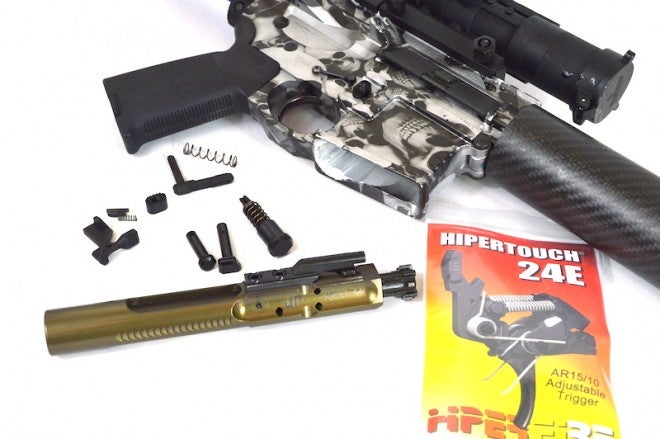

Recently, I found myself needing to pull the original Geissele trigger for another Black Rain stripped lower build. There were also some great Strike Industries parts and a JP Rifles Ultra LMOS carrier loitering around on my desk looking for a home on a rifle. Thus the upgrades began on a rifle that really needs no upgrading.

HiperFire HiperTouch 24E – $215.00

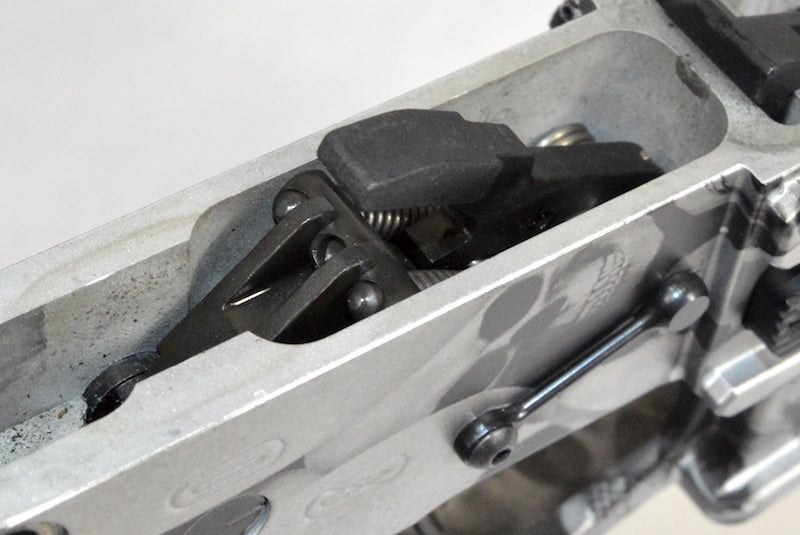

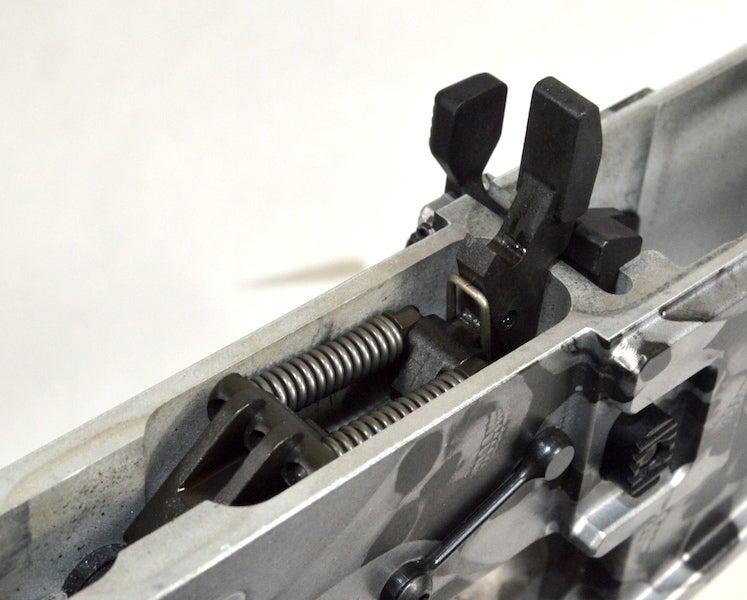

There was nothing wrong with the Geissele trigger that originally equipped my Fallout15, but I tend to prefer a single stage trigger for faster paced spirited shooting such as what I typically do with this rifle. When it comes to really fast and light single stage triggers, I am pretty enamored with the performance of the HiperFire line of HiperTouch triggers, which represent a complete redesign of the AR15 trigger unlike anything on the market. The 24E is considered Hiperfire’s higher tier entry with just a hair more pre-travel than their 24C models. It was the perfect trigger for this build and delivered a faster trigger for a gun I do a lot of blasting with (plus a little bit of precision shooting work).

DSC_0408 DSC_0411

Strike Industries

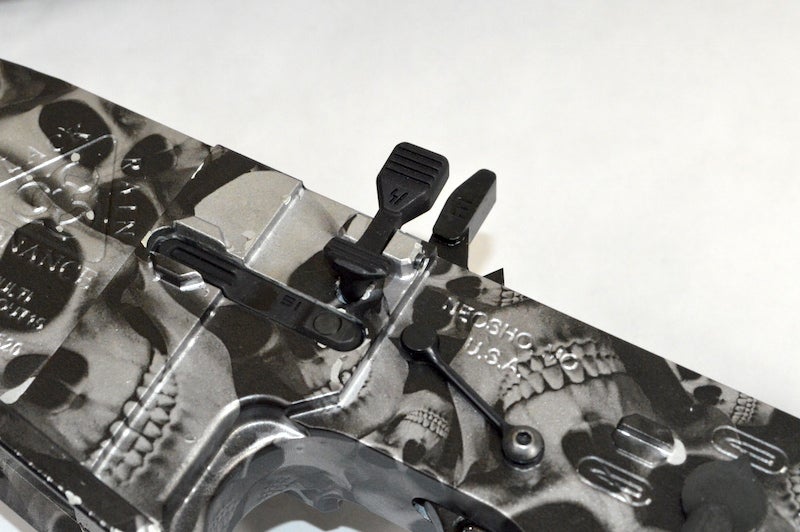

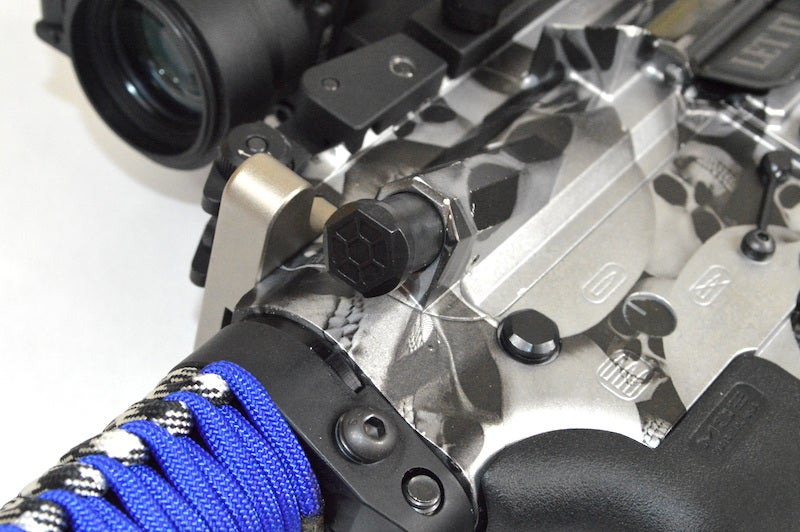

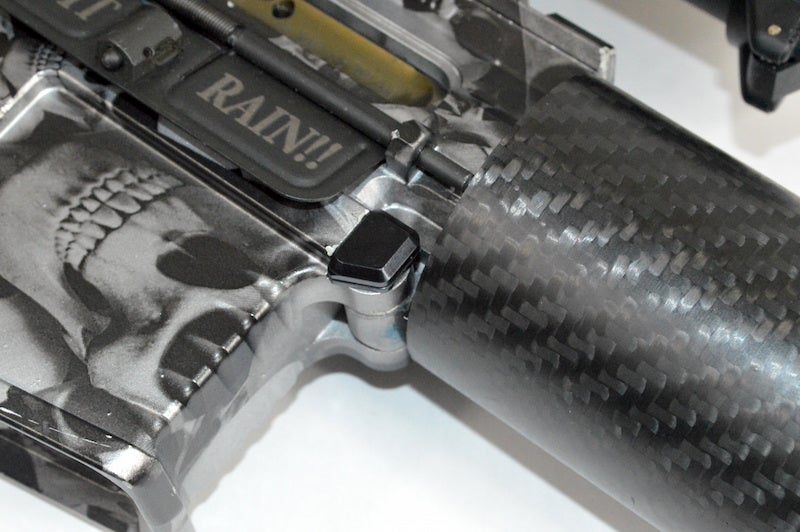

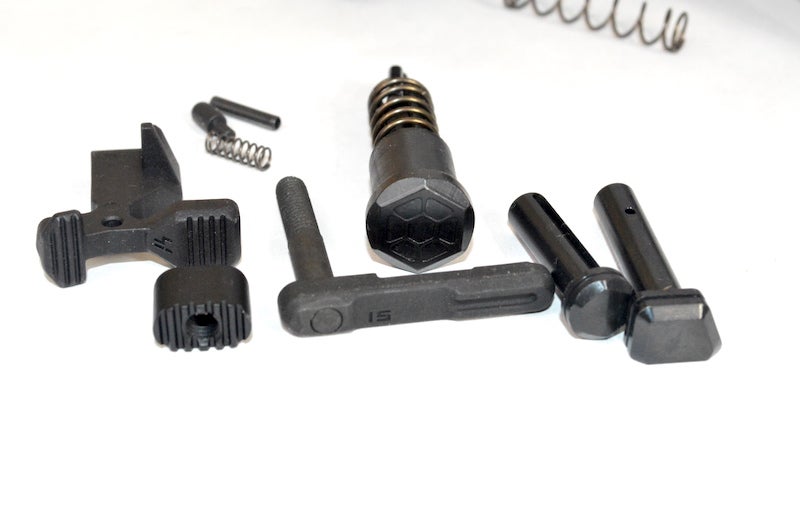

Strike has been just banging out one killer product right after another. If their innovation, design, and engineering does not grab your attention, their stunningly reasonable prices will. I replaced the original Mil-Spec parts with Strike’s new Extended Pivot Pins, AR Forward Assist, Enhanced Bolt Catch, and Enhanced Magazine Catch. The Extended Pivot Pins deliver users a ton of style with fingernail notches to make things quicker and faster when breaking open and AR. The Strike Forward Assist and Enhanced Magazine Catch both simply look cooler with stylistic design elements.

DSC_0404 DSC_0412 DSC_0414 DSC_0417

JP Rifles New Ultra LMOS Alloy Carrier – $340

Back a few years ago I used, tested, and reviewed the LMOS stainless Carrier from JP Rifles, and it was freaky insane how low I could turn down the adjustable gas block.

That LMOS carrier was only 6.68oz and about 5 oz less than your average AR carrier. The whole idea is that the less mass the gas system has to move, the less gas pressure is required to move that BCG mass and the further you can turn down the gas pressure. The lower you can get that gas pressure, the lower the experienced recoil to the shooter. The upgrade had my AR15 spitting out .223 rounds with the felt recoil of a Ruger 10/22.

DSC_0398

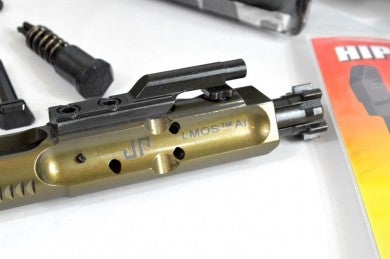

Later JP also introduced an Ultra LMOS carrier, which dropped the carrier weight to a stunning 3.76 oz as an option for those that wanted to maximize recoil reduction. The problem was it did require a little maintenance and was a bit finicky to tune, which led to JP dropping the product, but the scalpers starting pawning these amazing alloy carriers for 2-3 times their original price. JP was mad enough about the price scalping they restarted the Ultra LMOS product with a few tweaks to decrease maintenance, extend logevity, and further improve performance. This is a product that is running on the edge of reliability, designed to squeak out every bit of recoil reduction to speed up shot to shot performance on the competition circuit, so there are some compromises.

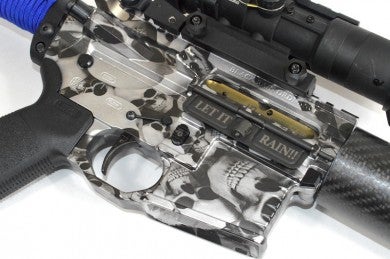

DSC_0416

Here’s the disclaimer from JP Rifles’s site:

 “Non-ferrous specialty carriers (like the Ultra LMOS) should be considered consumable rather than lifetime parts. The JPBC-1 yields a performance advantage for competition applications at a price. Your usage and maintenance will determine the duty life of your carrier. The JPBC-1 is a competition/race gun part only and is not recommended for any duty/defense use where absolute reliability is required. This carrier should also be run with an adjustable gas system to minimize stress on the entire bolt carrier assembly. This carrier is not recommended for use with gas systems shorter than mid-length for longest service life. Use with carbine or shorter gas systems may result in gas erosion in the tail-stock area and subsequent leakage and reduced service life.”

I don’t intend to toss my factory Black Rain BCG, with the above noted caveats noting that at some point 1000s of rounds from now, the carrier will need to be replaced.  My original intent was to install this carrier on a build with a carbine length buffer tube, but I had timing issues that prevented the bolt from locking back on the last round. The simple fact was that the carrier was out running the bolt catch. I found that this carrier really does prefer a rifle length buffer, and once I installed it on this build, I didn’t have any more issues getting it tuned up and running perfectly. JP Rifles does note that this carrier is not intended for defense or LEO use, but is intended for high performance competition rifles that are already running on the edge of performance/reliability. With the Ultra LMOS installed, the rifle feels like an electric stapler vs a AR15.

V7 Weapons – CT Bolt – $80 + Titanium Cam Pin $17

V7 is a newer entrant into the AR15 parts space, but their design and quality are absolutely top tier.

I choose to add several components, including their CT Bolt and titanium cam pin. The AR-15/M16 compatible bolt is made from Carpenter 158 Steel, which is then cryogenically treated to -300 degrees, MP tested, and has shown to have a 200% increase in life expectancy as a result. They even guarantee the CT bolt for life regardless of round count, and it’s all made in the USA. A great deal for only $80 for a top tier AR15/M16 Bolt, which I added to the JP Ultra LMOS carrier.

V7 offers some amazingly well designed ultralight AR15 components, including their 7.2 gram, titanium melonited cam pin, which was designed to deliver smoother functioning. The nerds in the group will say, “What about the nobility of titanium and its galvanic corrosion on aluminum?” Well to the nerds I would say stainless on aluminum is one of the worst pairings you can make from a galvanic corrosion perspective, and we don’t seem to have AR15s falling apart from that, do we? My theory was that the less weight the carrier sees, the less stress it will endure and hopefully extend its known limited life span.

Final Thoughts

Doing this set of upgrades to an already perfectly wonderful AR15 makes me want to start tearing out all my other custom AR15s and begin adding in all the neat little custom parts. There was a definitive performance uplift of going to the lighter JP Rifles Ultra LMOS carrier. The Strike Industries accessories added a lot of cool factor with a few extra features in the process. I love Geissele triggers, love them, but it was pretty transformational to shoot the same rifle with the extremely fast single stage Hiperfire 24E trigger after being used to feeling some take up on the two stage Geissele. Not bad for a rifle that didn’t need any upgrades.
